This is a customized slip ring with power, signal, fiber optical, it’s also a waterproof slip rings. Designed specifically for underwater operation and waterproof work. According to working environment, the water-proof slip ring could be divided into multiple protection grade, such as IP65, IP66, IP67, IP68 and so on. With stable performance and low torque, working temperature is -20°C~ +80°C. The inner diameter can be customized from 3 mm to 980mm. Any special request please contact with CENO, we will provide the best solution.
ECN000-02P-04S-02F- IP66 | Specification |
Circuits & Current | 2*2A,2*20mA,2*Fiber optic |
Voltage | 500VAC (power)24VDC (signal) |
Electrical noise | Max 30mΩ (50rpm) |
Dielectric strength | ≥1500V@50Hz (power) ≥300V@50Hz (signal) |
Isolation resistance | ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
Operating speed | 0-50 rpm |
Contact material | Precious metal |
Housing material | Aluminium alloy ,stainless steel |
IP protection grade | IP66 |
Fiber channels | 2 channels (SC connector) |
Fiber type | SM & MM |
Wave length | 1310/1550 nm (SM) 850/1310 nm (SM) |

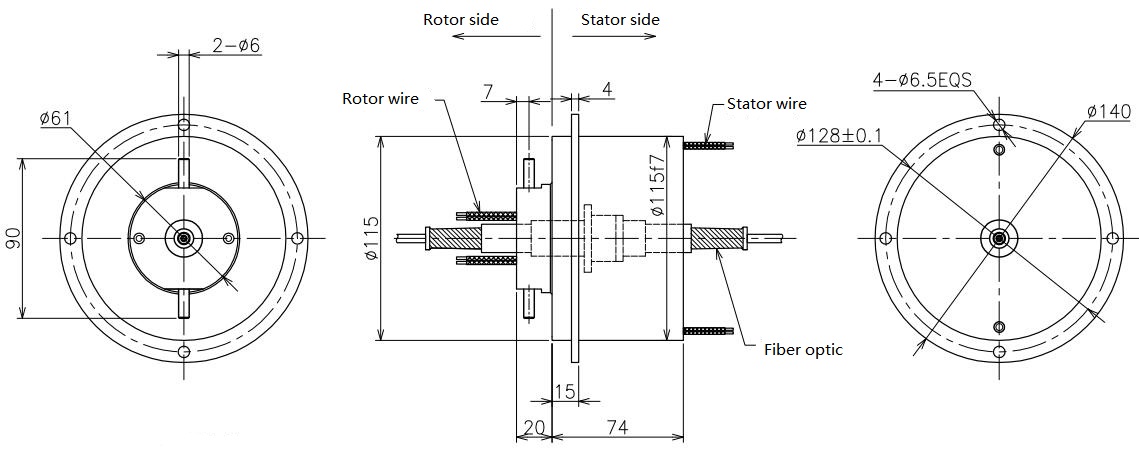

Outline drawing
